型号表示方法采用字母和数字编组方法。即DU—13M2/1300。其中DU表示固定室式带式过滤机。13M2-表示过滤面积即为有效过滤宽度×过滤长度。1300-表示有效过滤宽度mm。
The model representation method uses letter and number grouping together. Referred as DU-13M2 / 1300. DU refers as a fixed room belt filter.13M2- means filter area, also means effective filter width × filter length. 1300 - Indicates effective filter width mm.
目前定型的有效过滤宽度有1300mm,1800mm,2000mm,2500mm,2800mm,五个系列，型号及规格参数表附后。
The current effective filter width has five series: 1300mm, 1800mm, 2000mm, 2500mm, 2800mm, model and specifications attached to the table below.
其中每个系列有不同面积，若干种规格（以两米过滤长度增减）同一系列机身的宽度是一样的，同一系列的不同规格其长度是不同的，同一系列面积越大过滤能力愈强，同一系列不同面积的滤机主要是为了满足以下几方面要求：
Each series has a different area, a number of specifications (two meters for filter length of increase or decrease). The same series of body width is the same, length is different for difference specification, the larger the same series of areas, the stronger the ability to filter , The same series of different areas of the filter is mainly to meet the following requirements:
(1)处理量要求，增大面积（即增加有效过滤长度）可以通过提高速度（可保持一定过滤时间）增加处理量。
Processing amount requirements. enlarge the area (enlarge the effective filter length) could increase the speed ( maintain Filter time) to increase processing amount.
（2)适应不同分离工艺的要求，由于各物料的过滤性能差距很大，对分离要求也不相同，在工艺上表现为对抽滤洗涤，吸干等过程的时间分配都有不同要求；所以将集液系统根据需要进行分段隔离。控制一定的过滤长度。再通过调节胶带速度，便能满足工艺要求。
Adapt to the requirements of different separation process. Due to the material filter performance gap is large, the separation requirements are not the same, so in the process of performance for the filter washing, drying and other processes have different time distribution requirements; The collection system is segmented as needed. Control a certain length of the filter,then by adjusting the tape speed, will be able to meet the technological requirements.
除以上表中所列的常用规格外还可以根据要求按等差关系（以两面米为单元）增长过滤长度；增加过滤面积。用户如果对工艺有特殊要求。也可以重新设计，满足要求。
In addition to the commonly used specifications listed in the table above, the filter length can be increased according to the requirement (in two square meters as one units); increase the filter area. If the user has special requirements for the process, also could be redesigned to meet the special requirements.
The model representation method uses letter and number grouping together. Referred as DU-13M2 / 1300. DU refers as a fixed room belt filter.13M2- means filter area, also means effective filter width × filter length. 1300 - Indicates effective filter width mm.
目前定型的有效过滤宽度有1300mm,1800mm,2000mm,2500mm,2800mm,五个系列，型号及规格参数表附后。
The current effective filter width has five series: 1300mm, 1800mm, 2000mm, 2500mm, 2800mm, model and specifications attached to the table below.
其中每个系列有不同面积，若干种规格（以两米过滤长度增减）同一系列机身的宽度是一样的，同一系列的不同规格其长度是不同的，同一系列面积越大过滤能力愈强，同一系列不同面积的滤机主要是为了满足以下几方面要求：
Each series has a different area, a number of specifications (two meters for filter length of increase or decrease). The same series of body width is the same, length is different for difference specification, the larger the same series of areas, the stronger the ability to filter , The same series of different areas of the filter is mainly to meet the following requirements:
(1)处理量要求，增大面积（即增加有效过滤长度）可以通过提高速度（可保持一定过滤时间）增加处理量。
Processing amount requirements. enlarge the area (enlarge the effective filter length) could increase the speed ( maintain Filter time) to increase processing amount.
（2)适应不同分离工艺的要求，由于各物料的过滤性能差距很大，对分离要求也不相同，在工艺上表现为对抽滤洗涤，吸干等过程的时间分配都有不同要求；所以将集液系统根据需要进行分段隔离。控制一定的过滤长度。再通过调节胶带速度，便能满足工艺要求。
Adapt to the requirements of different separation process. Due to the material filter performance gap is large, the separation requirements are not the same, so in the process of performance for the filter washing, drying and other processes have different time distribution requirements; The collection system is segmented as needed. Control a certain length of the filter,then by adjusting the tape speed, will be able to meet the technological requirements.
除以上表中所列的常用规格外还可以根据要求按等差关系（以两面米为单元）增长过滤长度；增加过滤面积。用户如果对工艺有特殊要求。也可以重新设计，满足要求。
In addition to the commonly used specifications listed in the table above, the filter length can be increased according to the requirement (in two square meters as one units); increase the filter area. If the user has special requirements for the process, also could be redesigned to meet the special requirements.
 |

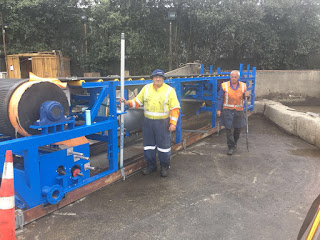

| Vacuum belt filter |
